590. N-ary Tree Postorder Traversa

Difficulty:Easy

Topics:Stack, Tree, Depth-First Search

Given the root of an n-ary tree, returnthe postorder traversal of its nodes' values.

Nary-Tree input serialization is represented in their level order traversal. Each group of children is separated by the null value (See examples)

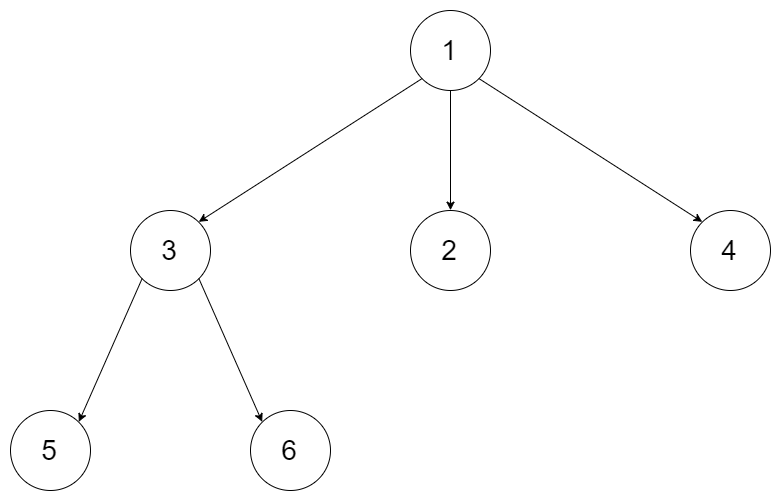

Example 1:

. N-ary Tree Postorder Traversa

Input:root = [1,null,3,2,4,null,5,6]
Output:[5,6,3,2,4,1]

Example 2:

. N-ary Tree Postorder Traversa

Input:root = [1,null,2,3,4,5,null,null,6,7,null,8,null,9,10,null,null,11,null,12,null,13,null,null,14]
Output:[2,6,14,11,7,3,12,8,4,13,9,10,5,1]

Constraints:

The number of the nodes in the tree is in the range [0, 100⁴].
-100 <= Node.val <= 100⁴
The height of the n-ary tree is less than or equal to 1000.

Follow up:Recursive solution is trivial, could you do it iteratively?

Solution:

We can approach it both recursively and iteratively. Since the follow-up asks for an iterative solution, we'll focus on that. Postorder traversal means visiting the children nodes first and then the parent node.

Let's implement this solution in PHP:590. N-ary Tree Postorder Traversal

        val = $val; } } /** * @param Node $root * @return integer[] */ function postorder($root) { ... ... ... /** * go to ./solution.php */ } // Example 1: $root1 = new Node(1); $root1->children = [ $node3 = new Node(3), new Node(2), new Node(4) ]; $node3->children = [ new Node(5), new Node(6) ]; print_r(postorder($root1)); // Output: [5, 6, 3, 2, 4, 1] // Example 2: $root2 = new Node(1); $root2->children = [ new Node(2), $node3 = new Node(3), $node4 = new Node(4), $node5 = new Node(5) ]; $node3->children = [ $node6 = new Node(6), $node7 = new Node(7) ]; $node4->children = [ $node8 = new Node(8) ]; $node5->children = [ $node9 = new Node(9), $node10 = new Node(10) ]; $node7->children = [ new Node(11) ]; $node8->children = [ new Node(12) ]; $node9->children = [ new Node(13) ]; $node11 = $node7->children[0]; $node11->children = [ new Node(14) ]; print_r(postorder($root2)); // Output: [2, 6, 14, 11, 7, 3, 12, 8, 4, 13, 9, 10, 5, 1] ?>Explanation:

         Initialization:

           Create a stack and push the root node onto it.
           Create an empty array result to store the final postorder traversal.

         Traversal:

           Pop the node from the stack, insert its value at the beginning of the result array.
           Push all its children onto the stack.
           Continue until the stack is empty.

         Result:

           The result array will contain the nodes in postorder after the loop finishes.


This iterative approach effectively simulates the postorder traversal by using a stack and reversing the process typically done by recursion.
