Leute, im IT-Betrieb ist es eine sehr allgemeine Aufgabe, Servermetriken wie die Auslastung von CPU/Speicher und Festplatte oder Dateisystemen zu überwachen, aber falls eine der Metriken als kritisch eingestuft wird, müssen engagierte Personen einige grundlegende Fehlerbehebungen durchführen Melden Sie sich beim Server an und finden Sie den ursprünglichen Grund für die Nutzung heraus, den die Person mehrmals ausführen muss, wenn sie mehrere gleiche Benachrichtigungen erhält, die Langeweile hervorrufen und überhaupt nicht produktiv sind. Um dieses Problem zu umgehen, kann ein System entwickelt werden, das reagiert, sobald ein Alarm ausgelöst wird, und auf diese Fälle reagiert, indem es einige grundlegende Befehle zur Fehlerbehebung ausführt. Nur um die Problemstellung und Erwartung zusammenzufassen -
Entwickeln Sie ein System, das die Erwartungen nicht erfüllt -
A. Installation und Konfiguration des CloudWatch-Agenten:
Öffnen Sie die Systems Manager-Konsole und klicken Sie auf „Dokumente“
Suchen Sie nach dem Dokument „AWS-ConfigureAWSPackage“ und führen Sie es aus, indem Sie die erforderlichen Details angeben.
Paketname = AmazonCloudwatchAgent
Nach der Installation muss der CloudWatch-Agent gemäß der Konfigurationsdatei konfiguriert werden. Führen Sie dazu das AmazonCloudWatch-ManageAgent-Dokument aus. Stellen Sie außerdem sicher, dass die JSON CloudWatch-Konfigurationsdatei in SSM Parameter.
gespeichert ist Sobald Sie sehen, dass Metriken an die CloudWatch-Konsole gemeldet werden, erstellen Sie einen Alarm für CPU- und Speicherauslastung usw.
B. EventBridge-Regel einrichten:
Um die Änderungen des Alarmzustands zu verfolgen, haben wir hier ein wenig angepasstes Muster, um nur Änderungen des Alarmzustands von „OK“ auf „ALARM“ und nicht umgekehrt zu verfolgen. Fügen Sie diese Regel dann als Auslöser zu einer Lambda-Funktion hinzu.
{ "source": ["aws.cloudwatch"], "detail-type": ["CloudWatch Alarm State Change"], "detail": { "state": { "value": ["ALARM"] }, "previousState": { "value": ["OK"] } } }
Lambda-Voraussetzungen:
Wir benötigen die folgenden Module zum Importieren, damit die Codes funktionieren -
Hinweis:Von den oben genannten Modulen werden alle Module mit Ausnahme des restlichen Moduls „Anfragen“ standardmäßig innerhalb einer zugrunde liegenden Lambda-Infrastruktur heruntergeladen. Der direkte Import des Moduls „requests“ wird in Lambda nicht unterstützt. Installieren Sie daher zunächst das Anforderungsmodul in einem Ordner auf Ihrem lokalen Computer (Laptop), indem Sie den folgenden Befehl ausführen -
pip3 install requests -t--no-user
_Danach wird dies in den Ordner heruntergeladen, in dem Sie den obigen Befehl ausführen oder in dem Sie die Quellcodes des Moduls speichern möchten. Ich hoffe, dass hier Lambda-Code auf Ihrem lokalen Computer vorbereitet wird. Wenn ja, erstellen Sie mit dem Modul eine ZIP-Datei des gesamten Lambda-Quellcodes. Laden Sie anschließend die ZIP-Datei in die Lambda-Funktion hoch.
Also, hier führen wir die folgenden zwei Szenarien durch -
1. CPU-Auslastung –Wenn der CPU-Auslastungsalarm ausgelöst wird, muss die Lambda-Funktion die Instanz abrufen, sich bei dieser Instanz anmelden und die fünf Prozesse mit dem höchsten Verbrauch ausführen. Anschließend wird ein JIRA-Problem erstellt und die Prozessdetails im Kommentarbereich hinzugefügt. Gleichzeitig wird eine E-Mail mit Alarmdetails und Jira-Problemdetails mit Prozessausgabe gesendet.
2. Speichernutzung –Gleicher Ansatz wie oben
Now, let me reframe the task details which lambda is supposed to perform -
First Set (Define the cpu and memory function) :
################# Importing Required Modules ################ ############################################################ import json import boto3 import time import os import sys sys.path.append('./python') ## This will add requests module along with all dependencies into this script import requests from requests.auth import HTTPBasicAuth ################## Calling AWS Services ################### ########################################################### ssm = boto3.client('ssm') sns_client = boto3.client('sns') ec2 = boto3.client('ec2') ################## Defining Blank Variable ################ ########################################################### cpu_process_op = '' mem_process_op = '' issueid = '' issuekey = '' issuelink = '' ################# Function for CPU Utilization ################ ############################################################### def cpu_utilization(instanceid, metric_name, previous_state, current_state): global cpu_process_op if previous_state == 'OK' and current_state == 'ALARM': command = 'ps -eo user,pid,ppid,cmd,%mem,%cpu --sort=-%cpu | head -5' print(f'Impacted Instance ID is : {instanceid}, Metric Name: {metric_name}') # Start a session print(f'Starting session to {instanceid}') response = ssm.send_command(InstanceIds = [instanceid], DocumentName="AWS-RunShellScript", Parameters={'commands': [command]}) command_id = response['Command']['CommandId'] print(f'Command ID: {command_id}') # Retrieve the command output time.sleep(4) output = ssm.get_command_invocation(CommandId=command_id, InstanceId=instanceid) print('Please find below output -\n', output['StandardOutputContent']) cpu_process_op = output['StandardOutputContent'] else: print('None') ################# Function for Memory Utilization ################ ############################################################### def mem_utilization(instanceid, metric_name, previous_state, current_state): global mem_process_op if previous_state == 'OK' and current_state == 'ALARM': command = 'ps -eo user,pid,ppid,cmd,%mem,%cpu --sort=-%mem | head -5' print(f'Impacted Instance ID is : {instanceid}, Metric Name: {metric_name}') # Start a session print(f'Starting session to {instanceid}') response = ssm.send_command(InstanceIds = [instanceid], DocumentName="AWS-RunShellScript", Parameters={'commands': [command]}) command_id = response['Command']['CommandId'] print(f'Command ID: {command_id}') # Retrieve the command output time.sleep(4) output = ssm.get_command_invocation(CommandId=command_id, InstanceId=instanceid) print('Please find below output -\n', output['StandardOutputContent']) mem_process_op = output['StandardOutputContent'] else: print('None')
Second Set (Create JIRA Issue) :
################## Create JIRA Issue ################ ##################################################### def create_issues(instanceid, metric_name, account, timestamp, region, current_state, previous_state, cpu_process_op, mem_process_op, metric_val): ## Create Issue ## url ='https://.atlassian.net//rest/api/2/issue' username = os.environ['username'] api_token = os.environ['token'] project = 'AnirbanSpace' issue_type = 'Incident' assignee = os.environ['username'] summ_metric = '%CPU Utilization' if 'CPU' in metric_name else '%Memory Utilization' if 'mem' in metric_name else '%Filesystem Utilization' if metric_name == 'disk_used_percent' else None metric_val = metric_val summary = f'Client | {account} | {instanceid} | {summ_metric} | Metric Value: {metric_val}' description = f'Client: Company\nAccount: {account}\nRegion: {region}\nInstanceID = {instanceid}\nTimestamp = {timestamp}\nCurrent State: {current_state}\nPrevious State = {previous_state}\nMetric Value = {metric_val}' issue_data = { "fields": { "project": { "key": "SCRUM" }, "summary": summary, "description": description, "issuetype": { "name": issue_type }, "assignee": { "name": assignee } } } data = json.dumps(issue_data) headers = { "Accept": "application/json", "Content-Type": "application/json" } auth = HTTPBasicAuth(username, api_token) response = requests.post(url, headers=headers, auth=auth, data=data) global issueid global issuekey global issuelink issueid = response.json().get('id') issuekey = response.json().get('key') issuelink = response.json().get('self') ################ Add Comment To Above Created JIRA Issue ################### output = cpu_process_op if metric_name == 'CPUUtilization' else mem_process_op if metric_name == 'mem_used_percent' else None comment_api_url = f"{url}/{issuekey}/comment" add_comment = requests.post(comment_api_url, headers=headers, auth=auth, data=json.dumps({"body": output})) ## Check the response if response.status_code == 201: print("Issue created successfully. Issue key:", response.json().get('key')) else: print(f"Failed to create issue. Status code: {response.status_code}, Response: {response.text}")
Third Set (Send an Email) :
################## Send An Email ################ ################################################# def send_email(instanceid, metric_name, account, region, timestamp, current_state, current_reason, previous_state, previous_reason, cpu_process_op, mem_process_op, metric_val, issueid, issuekey, issuelink): ### Define a dictionary of custom input ### metric_list = {'mem_used_percent': 'Memory', 'disk_used_percent': 'Disk', 'CPUUtilization': 'CPU'} ### Conditions ### if previous_state == 'OK' and current_state == 'ALARM' and metric_name in list(metric_list.keys()): metric_msg = metric_list[metric_name] output = cpu_process_op if metric_name == 'CPUUtilization' else mem_process_op if metric_name == 'mem_used_percent' else None print('This is output', output) email_body = f"Hi Team, \n\nPlease be informed that {metric_msg} utilization is high for the instanceid {instanceid}. Please find below more information \n\nAlarm Details:\nMetricName = {metric_name}, \nAccount = {account}, \nTimestamp = {timestamp}, \nRegion = {region}, \nInstanceID = {instanceid}, \nCurrentState = {current_state}, \nReason = {current_reason}, \nMetricValue = {metric_val}, \nThreshold = 80.00 \n\nProcessOutput: \n{output}\nIncident Deatils:\nIssueID = {issueid}, \nIssueKey = {issuekey}, \nLink = {issuelink}\n\nRegards,\nAnirban Das,\nGlobal Cloud Operations Team" res = sns_client.publish( TopicArn = os.environ['snsarn'], Subject = f'High {metric_msg} Utilization Alert : {instanceid}', Message = str(email_body) ) print('Mail has been sent') if res else print('Email not sent') else: email_body = str(0)
Fourth Set (Calling Lambda Handler Function) :
################## Lambda Handler Function ################ ########################################################### def lambda_handler(event, context): instanceid = event['detail']['configuration']['metrics'][0]['metricStat']['metric']['dimensions']['InstanceId'] metric_name = event['detail']['configuration']['metrics'][0]['metricStat']['metric']['name'] account = event['account'] timestamp = event['time'] region = event['region'] current_state = event['detail']['state']['value'] current_reason = event['detail']['state']['reason'] previous_state = event['detail']['previousState']['value'] previous_reason = event['detail']['previousState']['reason'] metric_val = json.loads(event['detail']['state']['reasonData'])['evaluatedDatapoints'][0]['value'] ##### function calling ##### if metric_name == 'CPUUtilization': cpu_utilization(instanceid, metric_name, previous_state, current_state) create_issues(instanceid, metric_name, account, timestamp, region, current_state, previous_state, cpu_process_op, mem_process_op, metric_val) send_email(instanceid, metric_name, account, region, timestamp, current_state, current_reason, previous_state, previous_reason, cpu_process_op, mem_process_op, metric_val, issueid, issuekey, issuelink) elif metric_name == 'mem_used_percent': mem_utilization(instanceid, metric_name, previous_state, current_state) create_issues(instanceid, metric_name, account, timestamp, region, current_state, previous_state, cpu_process_op, mem_process_op, metric_val) send_email(instanceid, metric_name, account, region, timestamp, current_state, current_reason, previous_state, previous_reason, cpu_process_op, mem_process_op, metric_val, issueid, issuekey, issuelink) else: None

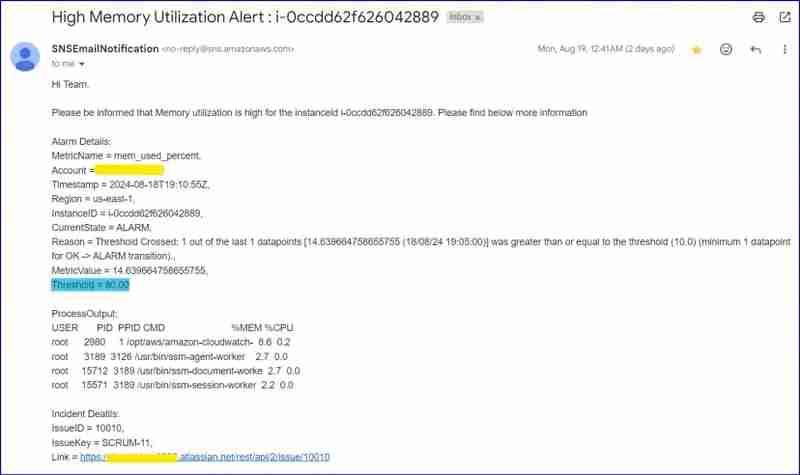

Alarm Email Screenshot :
Note: In ideal scenario, threshold is 80%, but for testing I changed it to 10%. Please see the Reason.

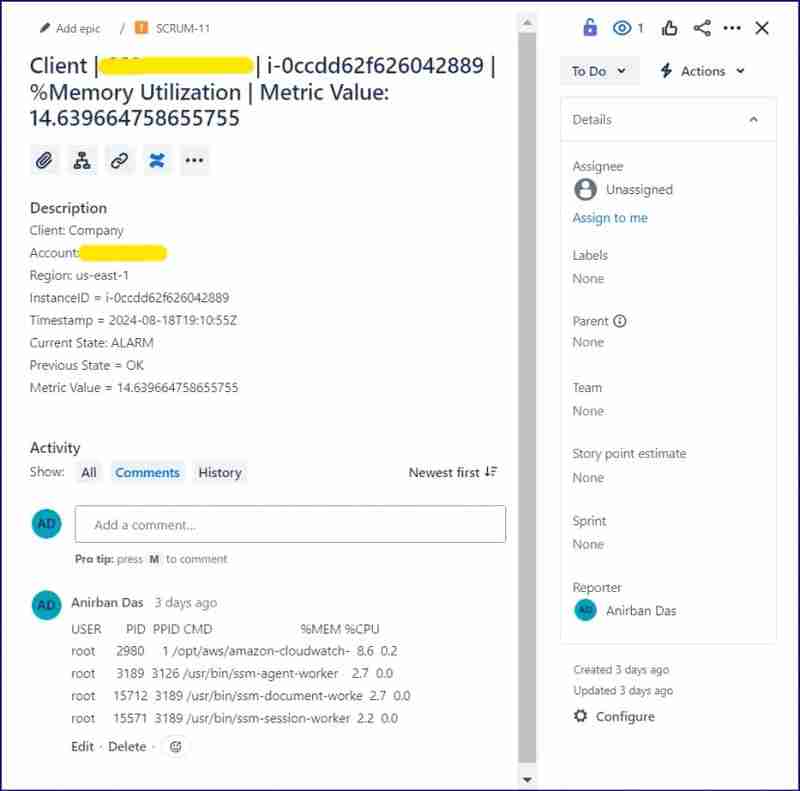

Alarm JIRA Issue :
In this scenario, if any server cpu or memory utilization metrics data are not captured, then alarm state gets changed from OK to INSUFFICIENT_DATA. This state can be achieved in two ways - a.) If server is in stopped state b.) If CloudWatch agent is not running or went in dead state.
So, as per below script, you'll be able to see that when cpu or memory utilization alarm status gets insufficient data, then lambda will first check if instance is in running status or not. If instance is in running state, then it will login and check CloudWatch agent status. Post that, it will create a JIRA issue and post the agent status in comment section of JIRA issue. After that, it will send an email with alarm details and agent status.
Full Code :
################# Importing Required Modules ################ ############################################################ import json import boto3 import time import os import sys sys.path.append('./python') ## This will add requests module along with all dependencies into this script import requests from requests.auth import HTTPBasicAuth ################## Calling AWS Services ################### ########################################################### ssm = boto3.client('ssm') sns_client = boto3.client('sns') ec2 = boto3.client('ec2') ################## Defining Blank Variable ################ ########################################################### cpu_process_op = '' mem_process_op = '' issueid = '' issuekey = '' issuelink = '' ################# Function for CPU Utilization ################ ############################################################### def cpu_utilization(instanceid, metric_name, previous_state, current_state): global cpu_process_op if previous_state == 'OK' and current_state == 'INSUFFICIENT_DATA': ec2_status = ec2.describe_instance_status(InstanceIds=[instanceid,])['InstanceStatuses'][0]['InstanceState']['Name'] if ec2_status == 'running': command = 'systemctl status amazon-cloudwatch-agent;sleep 3;systemctl restart amazon-cloudwatch-agent' print(f'Impacted Instance ID is : {instanceid}, Metric Name: {metric_name}') # Start a session print(f'Starting session to {instanceid}') response = ssm.send_command(InstanceIds = [instanceid], DocumentName="AWS-RunShellScript", Parameters={'commands': [command]}) command_id = response['Command']['CommandId'] print(f'Command ID: {command_id}') # Retrieve the command output time.sleep(4) output = ssm.get_command_invocation(CommandId=command_id, InstanceId=instanceid) print('Please find below output -\n', output['StandardOutputContent']) cpu_process_op = output['StandardOutputContent'] else: cpu_process_op = f'Instance current status is {ec2_status}. Not able to reach out!!' print(f'Instance current status is {ec2_status}. Not able to reach out!!') else: print('None') ################# Function for Memory Utilization ################ ############################################################### def mem_utilization(instanceid, metric_name, previous_state, current_state): global mem_process_op if previous_state == 'OK' and current_state == 'INSUFFICIENT_DATA': ec2_status = ec2.describe_instance_status(InstanceIds=[instanceid,])['InstanceStatuses'][0]['InstanceState']['Name'] if ec2_status == 'running': command = 'systemctl status amazon-cloudwatch-agent' print(f'Impacted Instance ID is : {instanceid}, Metric Name: {metric_name}') # Start a session print(f'Starting session to {instanceid}') response = ssm.send_command(InstanceIds = [instanceid], DocumentName="AWS-RunShellScript", Parameters={'commands': [command]}) command_id = response['Command']['CommandId'] print(f'Command ID: {command_id}') # Retrieve the command output time.sleep(4) output = ssm.get_command_invocation(CommandId=command_id, InstanceId=instanceid) print('Please find below output -\n', output['StandardOutputContent']) mem_process_op = output['StandardOutputContent'] print(mem_process_op) else: mem_process_op = f'Instance current status is {ec2_status}. Not able to reach out!!' print(f'Instance current status is {ec2_status}. Not able to reach out!!') else: print('None') ################## Create JIRA Issue ################ ##################################################### def create_issues(instanceid, metric_name, account, timestamp, region, current_state, previous_state, cpu_process_op, mem_process_op, metric_val): ## Create Issue ## url ='https://.atlassian.net//rest/api/2/issue' username = os.environ['username'] api_token = os.environ['token'] project = 'AnirbanSpace' issue_type = 'Incident' assignee = os.environ['username'] summ_metric = '%CPU Utilization' if 'CPU' in metric_name else '%Memory Utilization' if 'mem' in metric_name else '%Filesystem Utilization' if metric_name == 'disk_used_percent' else None metric_val = metric_val summary = f'Client | {account} | {instanceid} | {summ_metric} | Metric Value: {metric_val}' description = f'Client: Company\nAccount: {account}\nRegion: {region}\nInstanceID = {instanceid}\nTimestamp = {timestamp}\nCurrent State: {current_state}\nPrevious State = {previous_state}\nMetric Value = {metric_val}' issue_data = { "fields": { "project": { "key": "SCRUM" }, "summary": summary, "description": description, "issuetype": { "name": issue_type }, "assignee": { "name": assignee } } } data = json.dumps(issue_data) headers = { "Accept": "application/json", "Content-Type": "application/json" } auth = HTTPBasicAuth(username, api_token) response = requests.post(url, headers=headers, auth=auth, data=data) global issueid global issuekey global issuelink issueid = response.json().get('id') issuekey = response.json().get('key') issuelink = response.json().get('self') ################ Add Comment To Above Created JIRA Issue ################### output = cpu_process_op if metric_name == 'CPUUtilization' else mem_process_op if metric_name == 'mem_used_percent' else None comment_api_url = f"{url}/{issuekey}/comment" add_comment = requests.post(comment_api_url, headers=headers, auth=auth, data=json.dumps({"body": output})) ## Check the response if response.status_code == 201: print("Issue created successfully. Issue key:", response.json().get('key')) else: print(f"Failed to create issue. Status code: {response.status_code}, Response: {response.text}") ################## Send An Email ################ ################################################# def send_email(instanceid, metric_name, account, region, timestamp, current_state, current_reason, previous_state, previous_reason, cpu_process_op, mem_process_op, metric_val, issueid, issuekey, issuelink): ### Define a dictionary of custom input ### metric_list = {'mem_used_percent': 'Memory', 'disk_used_percent': 'Disk', 'CPUUtilization': 'CPU'} ### Conditions ### if previous_state == 'OK' and current_state == 'INSUFFICIENT_DATA' and metric_name in list(metric_list.keys()): metric_msg = metric_list[metric_name] output = cpu_process_op if metric_name == 'CPUUtilization' else mem_process_op if metric_name == 'mem_used_percent' else None email_body = f"Hi Team, \n\nPlease be informed that {metric_msg} utilization alarm state has been changed to {current_state} for the instanceid {instanceid}. Please find below more information \n\nAlarm Details:\nMetricName = {metric_name}, \n Account = {account}, \nTimestamp = {timestamp}, \nRegion = {region}, \nInstanceID = {instanceid}, \nCurrentState = {current_state}, \nReason = {current_reason}, \nMetricValue = {metric_val}, \nThreshold = 80.00 \n\nProcessOutput = \n{output}\nIncident Deatils:\nIssueID = {issueid}, \nIssueKey = {issuekey}, \nLink = {issuelink}\n\nRegards,\nAnirban Das,\nGlobal Cloud Operations Team" res = sns_client.publish( TopicArn = os.environ['snsarn'], Subject = f'Insufficient {metric_msg} Utilization Alarm : {instanceid}', Message = str(email_body) ) print('Mail has been sent') if res else print('Email not sent') else: email_body = str(0) ################## Lambda Handler Function ################ ########################################################### def lambda_handler(event, context): instanceid = event['detail']['configuration']['metrics'][0]['metricStat']['metric']['dimensions']['InstanceId'] metric_name = event['detail']['configuration']['metrics'][0]['metricStat']['metric']['name'] account = event['account'] timestamp = event['time'] region = event['region'] current_state = event['detail']['state']['value'] current_reason = event['detail']['state']['reason'] previous_state = event['detail']['previousState']['value'] previous_reason = event['detail']['previousState']['reason'] metric_val = 'NA' ##### function calling ##### if metric_name == 'CPUUtilization': cpu_utilization(instanceid, metric_name, previous_state, current_state) create_issues(instanceid, metric_name, account, timestamp, region, current_state, previous_state, cpu_process_op, mem_process_op, metric_val) send_email(instanceid, metric_name, account, region, timestamp, current_state, current_reason, previous_state, previous_reason, cpu_process_op, mem_process_op, metric_val, issueid, issuekey, issuelink) elif metric_name == 'mem_used_percent': mem_utilization(instanceid, metric_name, previous_state, current_state) create_issues(instanceid, metric_name, account, timestamp, region, current_state, previous_state, cpu_process_op, mem_process_op, metric_val) send_email(instanceid, metric_name, account, region, timestamp, current_state, current_reason, previous_state, previous_reason, cpu_process_op, mem_process_op, metric_val, issueid, issuekey, issuelink) else: None

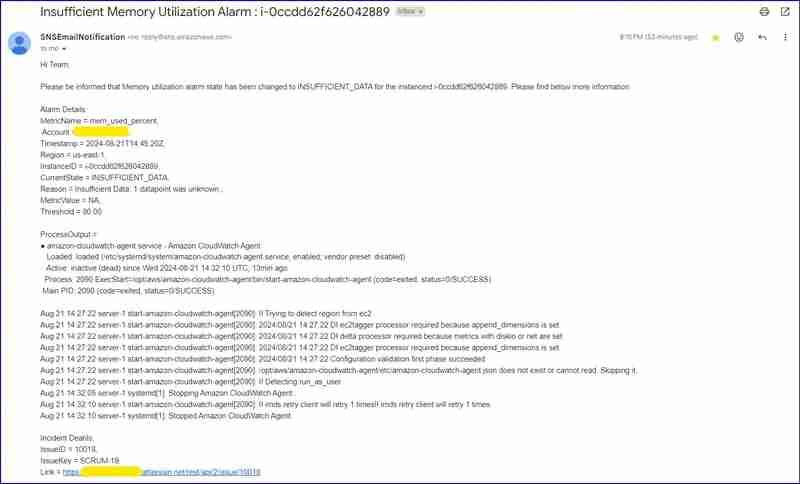

Insufficient Data Email Screenshot :

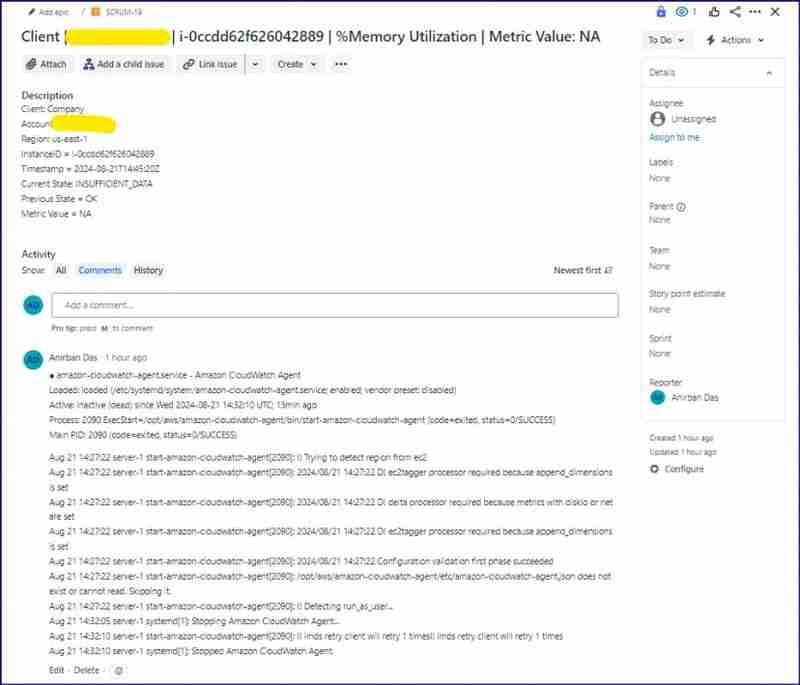

Insufficient data JIRA Issue :
In this article, we have tested scenarios on both cpu and memory utilization, but there can be lots of metrics on which we can configure auto-incident and auto-email functionality which will reduce significant efforts in terms of monitoring and creating incidents and all. This solution has given a initial approach how we can proceed further, but for sure there can be other possibilities to achieve this goal. I believe you all will understand the way we tried to make this relatable. Please like and comment if you love this article or have any other suggestions, so that we can populate in coming articles. ??
Thanks!!
Anirban Das
